| 技术概述 |
 |
| 公称轴径mm |
导向椭圆法兰 |
重量(g) |

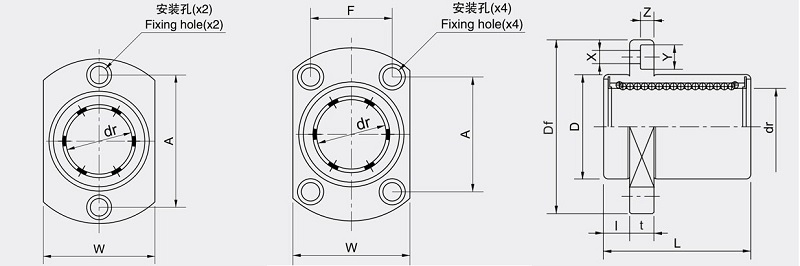

主要尺寸和公差 |
主要尺寸和公差 法兰 |
额定负荷 |
| dr |
dr |
D |
D |
L |
L |
l |
Df |
W |
t |
A |
F |
X |
Y |
Z |
偏心 |
垂直度 |
动负荷 |
静负荷 |
| mm |
公差μm |
mm |
公差μm |
mm |
公差μm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
μm |
μm |
C N |
Co N |
| 6 |
LMHP6UU |
21 |
6 |
0/-9 |
12 |
0/-13 |
19 |
±300 |
5 |
28 |
18 |
5 |
20 |
- |
3.5 |
6 |
3.1 |
12 |
12 |
206 |
265 |
| 8 |
LMHP8UU |
33 |
8 |
0/-9 |
15 |
0/-13 |
24 |
±300 |
5 |
32 |
21 |
5 |
24 |
- |
3.5 |
6 |
3.1 |
12 |
12 |
274 |
392 |
| 10 |
LMHP10UU |
64 |
10 |
0/-9 |
19 |
0/-16 |
29 |
±300 |
6 |
40 |
25 |
6 |
29 |
- |
4.5 |
7.5 |
4.1 |
12 |
12 |
372 |
549 |
| 12 |
LMHP12UU |
68 |
12 |
0/-9 |
21 |
0/-16 |
30 |
0/-200 |
6 |
42 |
27 |
6 |
32 |
- |
4.5 |
7.5 |
4.1 |
12 |
12 |
510 |
784 |
| 13 |
LMHP13UU |
81 |
13 |
0/-9 |
23 |
0/-16 |
32 |
0/-200 |
6 |
43 |
29 |
6 |
33 |
- |
4.5 |
7.5 |
4.1 |
12 |
12 |
510 |
784 |
| 16 |
LMHP16UU |
112 |
16 |
0/-9 |
28 |
0/-16 |
37 |
0/-200 |
6 |
48 |
34 |
6 |
31 |
22 |
4.5 |
7.5 |
4.1 |
12 |
12 |
774 |
1180 |
| 20 |
LMHP20UU |
167 |
20 |
0/-10 |
32 |
0/-19 |
42 |
0/-200 |
8 |
54 |
38 |
8 |
36 |
24 |
5.5 |
9 |
5.1 |
15 |
15 |
882 |
1370 |
| 25 |
LMHP25UU |
325 |
25 |
0/-10 |
40 |
0/-19 |
59 |
0/-300 |
8 |
62 |
46 |
8 |
40 |
32 |
5.5 |
9 |
5.1 |
15 |
15 |
980 |
1570 |
| 30 |
LMHP30UU |
388 |
30 |
0/-10 |
45 |
0/-19 |
64 |
0/-300 |
10 |
74 |
51 |
10 |
49 |
35 |
6.6 |
11 |
6.1 |
15 |
15 |
1570 |
2740 |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
 |
|
 |
