| 技术概述 |
 |

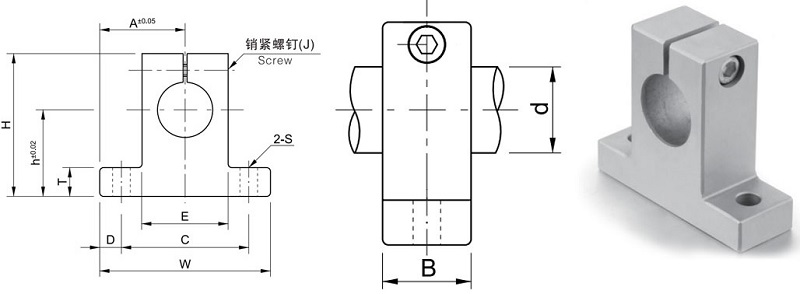

| 型号 |
轴径 |
尺寸(mm) |
重量(g) |
| h |
A |
W |
H |
T |
E |
D |
C |
B |
S |
J |
| SH8 |
φ8 |
20 |
21 |
42 |
32.8 |
6 |
18 |
5 |
32 |
14 |
φ5.5 |
M4 |
24 |
| SH10 |
φ10 |
20 |
21 |
42 |
32.8 |
6 |
18 |
5 |
32 |
14 |
φ5.5 |
M4 |
24 |
| SH12 |
φ12 |
23 |
21 |
42 |
37.5 |
6 |
20 |
5 |
32 |
14 |
φ5.5 |
M4 |
30 |
| SH13 |
φ13 |
23 |
21 |
42 |
37.5 |
6 |
20 |
5 |
32 |
14 |
φ5.5 |
M4 |
30 |
| SH16 |
φ16 |
27 |
24 |
46 |
44 |
8 |
25 |
5 |
38 |
16 |
φ5.5 |
M4 |
40 |
| SH20 |
φ20 |
31 |
30 |
60 |
51 |
10 |
30 |
7.5 |
45 |
20 |
φ6.6 |
M5 |
70 |
| SH25 |
φ25 |
35 |
35 |
70 |
60 |
12 |
38 |
7 |
56 |
24 |
φ6.6 |
M6 |
130 |
| SH30 |
φ30 |
42 |
42 |
84 |
70 |
12 |
44 |
10 |
64 |
28 |
φ9 |
M6 |
180 |
| SH35 |
φ35 |
50 |
49 |
98 |
82 |
15 |
50 |
12 |
74 |
32 |
φ11 |
M8 |
270 |
| SH40 |
φ40 |
60 |
57 |
114 |
96 |
15 |
60 |
12 |
90 |
36 |
φ11 |
M8 |
420 |
| SH50 |
φ50 |
70 |
63 |
126 |
120 |
18 |
74 |
13 |
100 |
40 |
φ14 |
M12 |
750 |
| SH60 |
φ60 |
80 |
74 |
148 |
136 |
18 |
90 |
14 |
120 |
45 |
φ14 |
M12 |
1100 |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
 |
|
 |
